ALSM-18-O

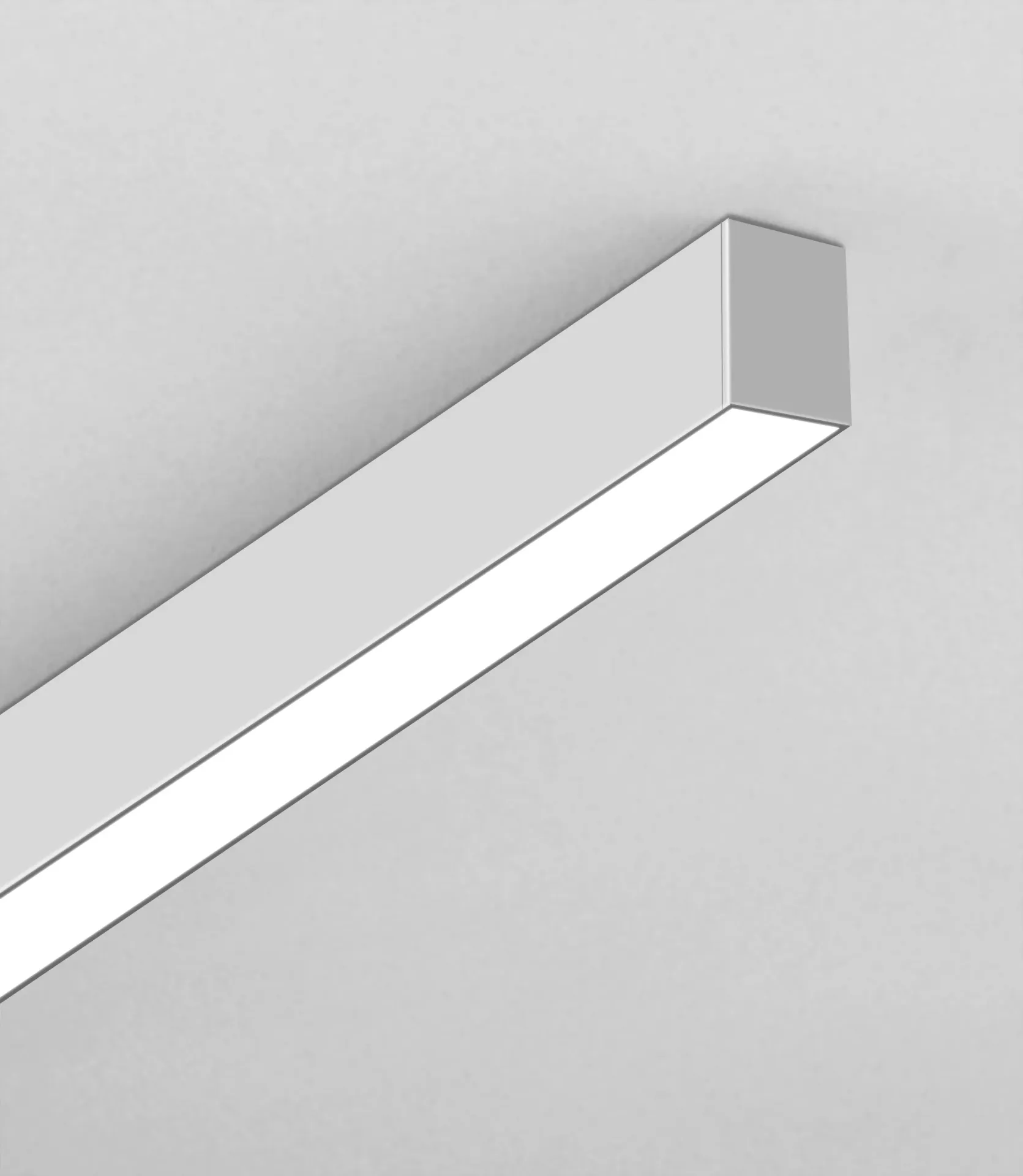

ALSM-18-O 1.8" Architectural LED Linear Surface

Just 1.8" wide, with a built-in driver, adjustable CCT and selectable wattage, for slim lines of light on the ceiling.

- Adjustable 3000K, 3500K or 4000K, and selectable 80, 60 or 40 W on 8' lengths

- 2', 4' and 8' lengths, up to 1200 lumens per foot

- 100% down or 25% up/75% down, set with a visible DIP switch

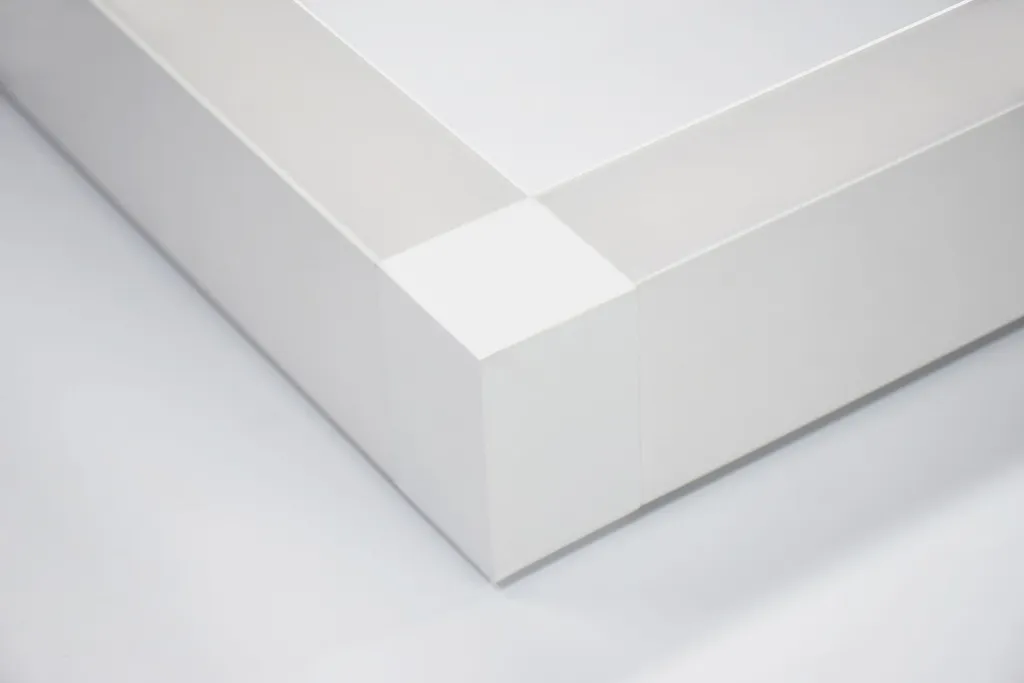

- Joins into continuous runs and custom shapes

- Surface mounting kits available

90+ CRI · 0-10V dimming to 10% or 1% · 110-277V · UL certified · damp location rated

Authorized Reps Only — Sign in to view pricing.

Length
- 2'
- 4'
- 8'
Wattage
- Tunable Wattage (20W/15W/10W)
- Tunable Wattage (40W/30W/20W)
- Tunable Wattage (80W/60W/40W)

Length	2', 4', 8'
Wattage	Tunable Wattage (20W/15W/10W), Tunable Wattage (40W/30W/20W), Tunable Wattage (80W/60W/40W)

Spec Sheets & Downloads

Spec Sheet ALSM-18-O.pdf
