WPLP-M

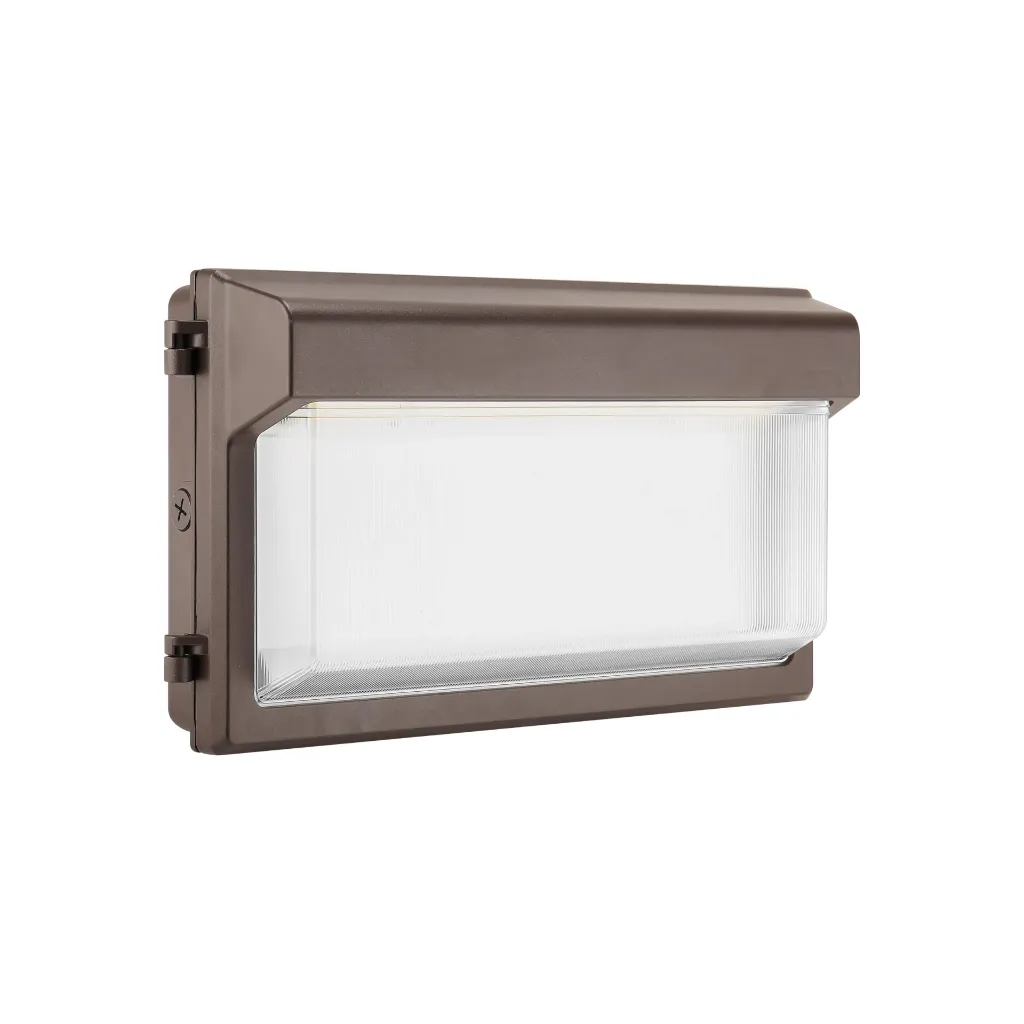

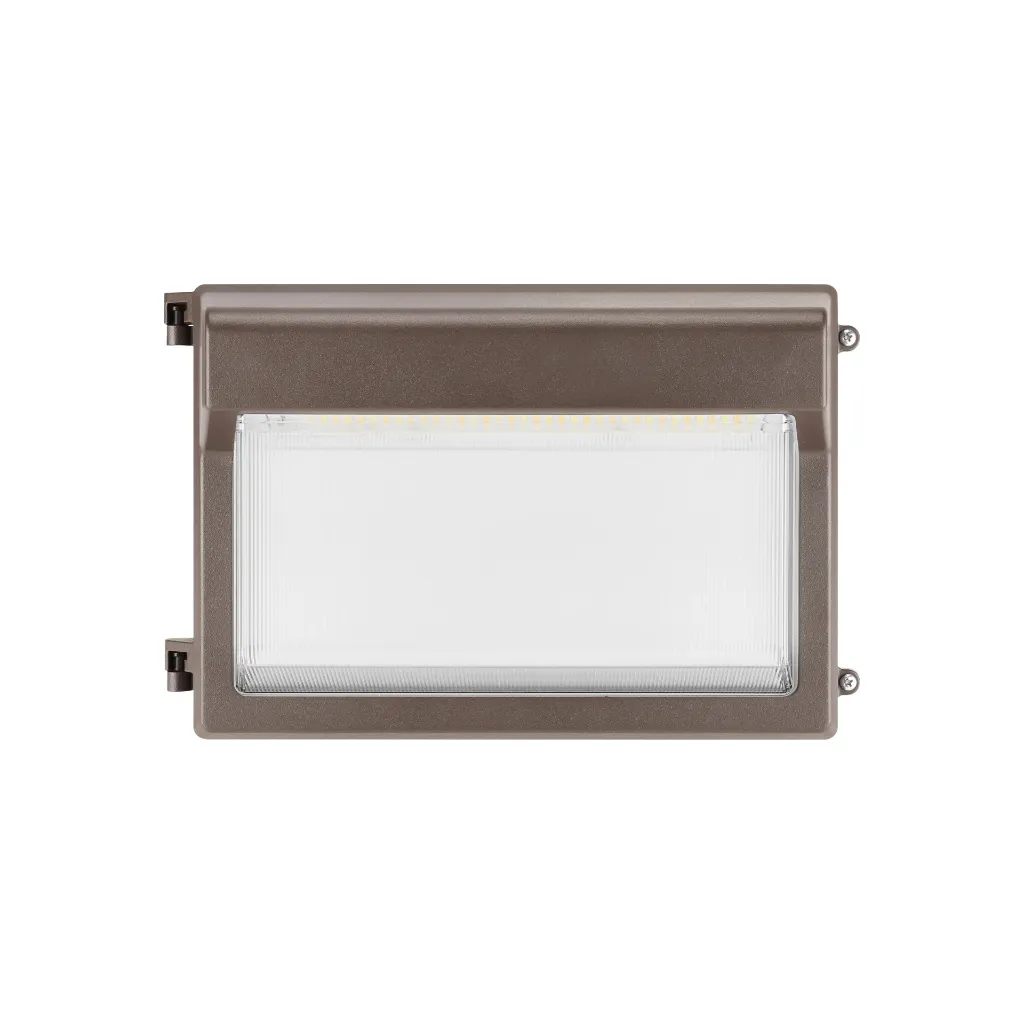

WPLP-M LED Low-Profile Wall Pack, Selectable CCT and Wattage

A low-profile LED wall pack in three body sizes, with on-site wattage and CCT selection and a plastic or glass lens.

- 40, 60, 90 or 120 W, each with four selectable power levels, up to 16,500 lumens

- On-site CCT and power controller: 3000K, 4000K or 5000K, up to 172 lm/W

- Plastic or glass lens in 80 CRI, with optional built-in photocell

- 0-10V dimming from 100% to 10%, with an optional 8 W or 5 W emergency battery

- Rugged cast-aluminum housing, sealed against moisture, rated for wet locations

For architectural wall-mounted lighting

40 / 60 / 90 / 120 W · 3000K / 4000K / 5000K · 80 CRI · 120-277V · UL / cUL wet location listed · 50,000-hour life · 5-year limited warranty

Authorized Reps Only — Sign in to view pricing.

Wattage
- Selectable Wattage (40W, 32W, 27W, 16W)
- Selectable Wattage (60W, 50W, 40W, 25W)
- Selectable Wattage (90W, 70W, 50W, 30W)
- Selectable Wattage (120W, 100W, 80W, 50W)
Color Temperature
- Selectable CCT (3000K, 4000K, 5000K)

Wattage	Selectable Wattage (40W, 32W, 27W, 16W), Selectable Wattage (60W, 50W, 40W, 25W), Selectable Wattage (90W, 70W, 50W, 30W), Selectable Wattage (120W, 100W, 80W, 50W)
Color Temperature	Selectable CCT (3000K, 4000K, 5000K)

Spec Sheets & Downloads

Spec Sheet WPLP-M.pdf
