WPWM-M

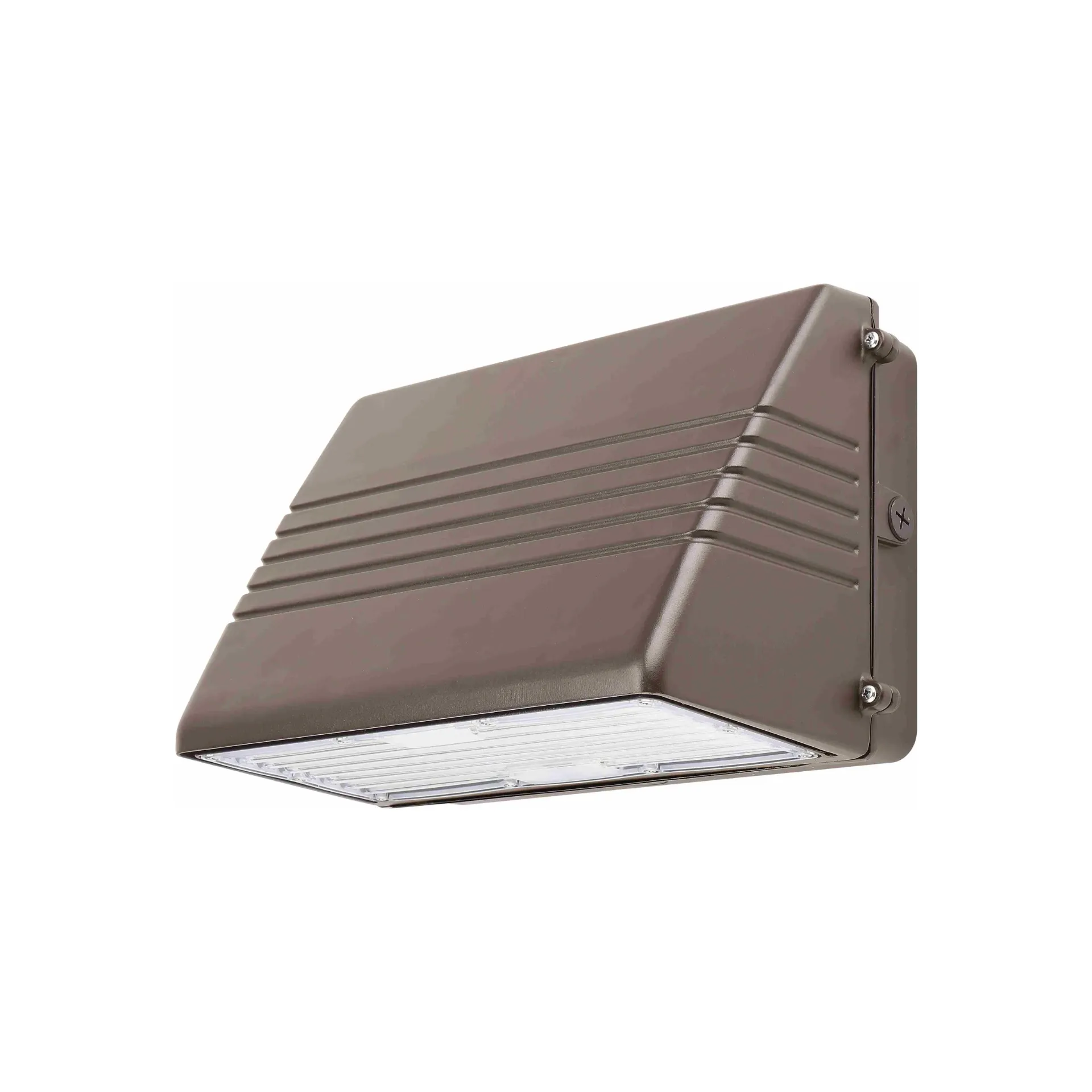

WPWM-M LED Full Cutoff Wall Pack, Selectable CCT and Wattage

A full cutoff LED wall pack in two sizes, with on-site wattage and CCT selection and zero uplight.

- 70, 125 or 135 W, each with four power levels (100%, 80%, 60%, 40%), up to 20,000 lumens

- On-site CCT and power controller: 3000K, 4000K or 5000K, up to 171 lm/W

- Zero uplight design with a tempered UV-coated flat lens for glare control

- 0-10V dimming from 100% to 10%, with optional occupancy sensor, photocell and emergency battery

- Rugged cast-aluminum housing with a polyester powder finish, sealed for wet locations

For perimeter lighting at schools, factories, hospitals, warehouses and retail sites

70 / 125 / 135 W · 3000K / 4000K / 5000K · 70 CRI · 120-277V · UL / cUL wet location listed · 50,000-hour life · 5-year limited warranty

Authorized Reps Only — Sign in to view pricing.

Wattage
- Selectable Wattage (125W, 100W, 75W, 50W)
- Selectable Wattage (70W, 56W, 42W, 28W)
- Selectable Wattage (135W, 108W, 81W, 54W)
Color Temperature
- Selectable CCT (3000K, 4000K, 5000K)

Wattage	Selectable Wattage (125W, 100W, 75W, 50W), Selectable Wattage (70W, 56W, 42W, 28W), Selectable Wattage (135W, 108W, 81W, 54W)
Color Temperature	Selectable CCT (3000K, 4000K, 5000K)

Spec Sheets & Downloads

Spec Sheet WPWM-M.pdf
